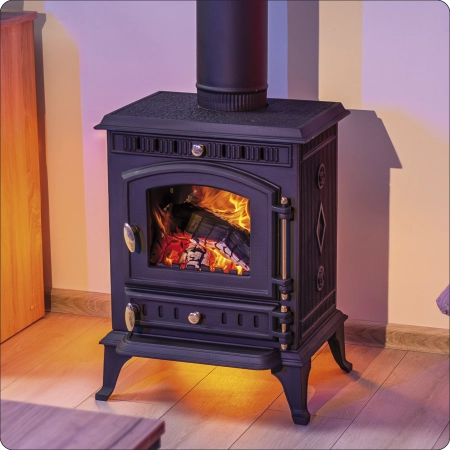

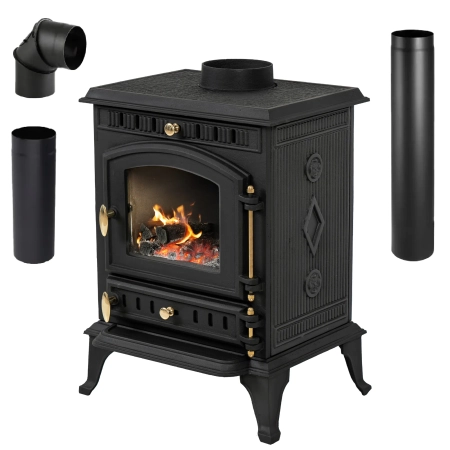

MILTRA 7 kW cast iron wood stove

Cast iron fireplace Thunder Mitra 7 kW

Robust 7 kW cast iron stove, combining classic minimalist design with modern technical solutions. High thermal efficiency and eco-design compliance ensure economical and environmentally friendly heating.

Specification:

• Fuel type: seasoned hardwood (moisture content ≤20%)
• Nominal power: 7 kW
• Heating power range: 5-10 kW
• Construction material: cast iron
• Thermal efficiency: 79.1%
• Flue gas temperature: 312 °C
• Max billet length: 28 cm
• Type of glazing: straight
• Door opening: to the right
• Weight: 78 kg
• Exhaust outlet diameter: 140 mm
• Dimensions (S×W×G): 47 × 62.5 × 39 cm
• Meets the criteria of the ECO-PROJECT
• Energy class: A
• EEI: 96.57
• CO emissions: ≤ 0.03% (@ 13% O₂)
• PM emissions: 38 mg/Nm³

The main features of the cast iron stove:

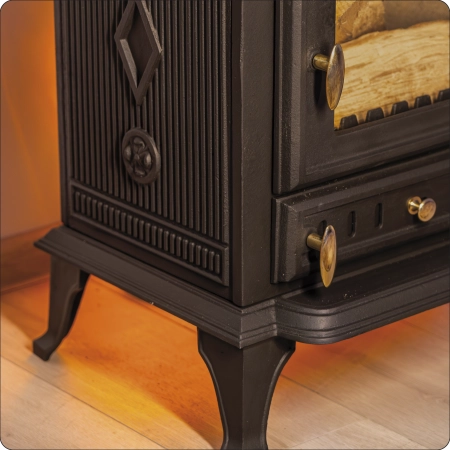

1. Stove made of the highest quality cast iron, guaranteeing durability and excellent heat conduction, making it a reliable choice for many years to come.
2. Minimalist design in an elegant style that will fit perfectly into any interior, adding a unique character to it.

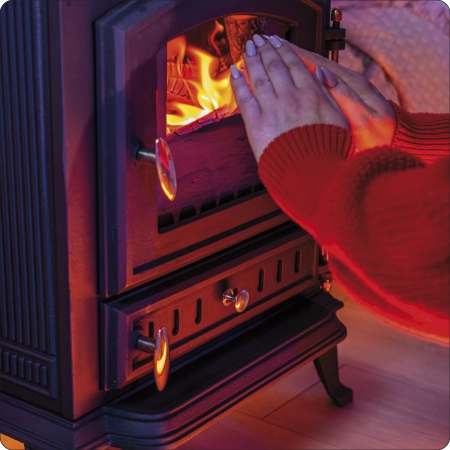

3. Innovative cold handle system that protects your hands from burning, ensuring comfort and safety of use.
4. The possibility of precise adjustment of the supply, which allows you to fully control the combustion process and adjust the power of the stove to your needs.
5. A clean glass system that minimizes soot buildup, ensuring a crystal-clear view of the flames and easier stove maintenance.

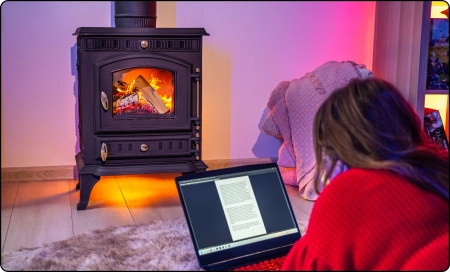

THUNDER® MITRA cast iron stove is a combination of modern technology and classic design that will bring warmth, comfort and style to your home.

Aesthetic and functional

• Furnace THUNDER Mitra combines not only exceptional aesthetics, but also excellent functionality. Thanks to the thoughtful design, the oven distributes heat evenly, providing pleasant i optimal temperature throughout the room.
• Its large hearth allows it to burn larger pieces of wood up to 30 cm, which significantly increases convenience i comfort use, eliminating the frequent need to add fuel. It is a combination of elegance and practicality makes the Mitra stove a excellent the choice for every home.
• The stove is adapted to work with recuperation system, providing efficient heating and ventilation in buildings with heat recovery.
• The furnace is designed to work with a recuperation system, providing efficient heating and ventilation in buildings with heat recovery.

Convenient use

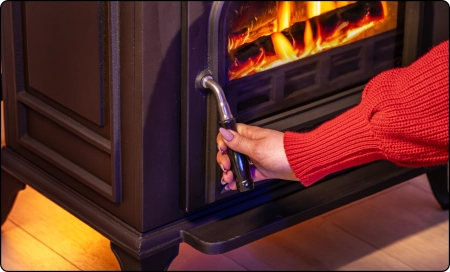

1. Furnace THUNDER Mitra was designed with maximum comfort and safety. The cold handle system effectively protects your hands against burns, allowing safe operation stove even during heavy burning.
2. Practical container an ash pan collects the residue left over from the burned wood, and a movable grate facilitates fast i convenient ash removal. Thanks to the system of clean glass, soot deposition is minimized, providing a clear view of the flames and simpler stove maintenance.
3. Mitra stove is a combination of convenience,functionalities i elegance, which will bring warmth and style to Your home.

Technical data and set

• MITRA Cast Iron Stove
• Instruction manual EN/ENG
• Protective gloves

Use the supplied protective gloves when operating the oven, as the unit's components reach high temperatures.
