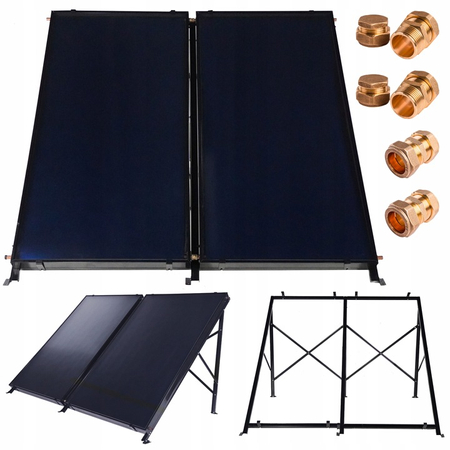

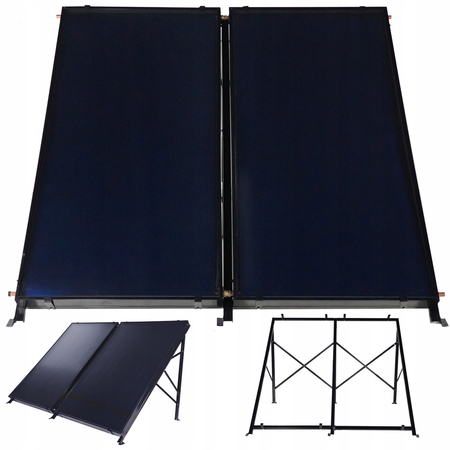

The set includes:

• Flat collector with an area of 2.5 m² - 2 pieces
• Structure for two flat plate collectors - 1 piece
• Clamp plugs - 2 pieces
• Double clamp couplings - 2 pieces

Install a solar collector and enjoy free energy from the sun!

You dream of constant access to hot water, but do not want to pay high costs? Solar collector is the solution you've been waiting for! By choosing a THUNDER solar collector, you are opting for a functional and cost-effective solution. Don't wait any longer - bet on comfort and savings today! It's a solution that pays for itself after 2-3 years of use.

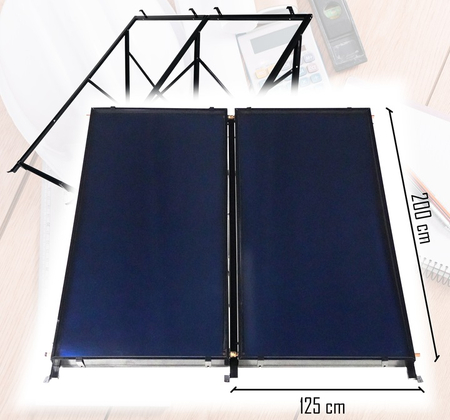

The structure is adapted for the installation of two flat solar collectors with dimensions of 2000×1250×80 mm (area of 2×2.5 m²). The frame can be installed both on the ground and on a pitched roof by removing the rear legs of the kit.

Main features:

• Fit for solar panels: Our design is specifically engineered for flat solar panels, guaranteeing a full fit and safe installation.
• Robust construction: Made of high quality materials, the construction ensures robustness and durability. Weather resistance is a guarantee of long-term use.
• Easy to install: With a simple design, self-installation becomes easy even for those without specialized experience. Step-by-step instructions will make the installation process easier for you.
• Energy efficiency: the design allows for optimal panel positioning, resulting in maximum exposure to sunlight and efficient energy harvesting.
• Multi-purpose: Ideal for mounting on the roof or other ground, the design will work well in a variety of conditions and locations.

Flat-plate collector with an area of 2.5 m²

• Collector dimensions: 2000 mm × 1250 mm × 80 mm
• Absorber: 0.4 mm aluminum with blue titanium coating
• Absorber tubes: Copper
• Absorption: 95%
• Emission: 5%
• Absorber system: Harp
• Cover material: low iron tempered glass
• Frame material: Black aluminum alloy
• Insulating material: Fiberglass
• Connections: 3/4"
